Repair Procedures: Installation

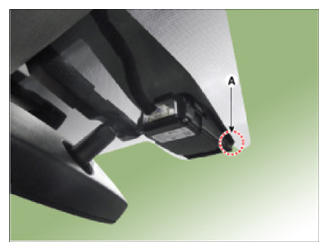

  1. Align front view camera with windshield bracket using forward edge point (A).
    G14083786Courtesy of HYUNDAI MOTOR AMERICA

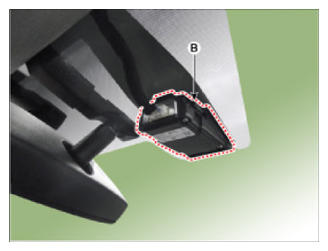

  2. Engage snaps and pivot upward to lock point (B).
    G14083787Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Front view camera unit is fully assembled when a single click sound is hear.

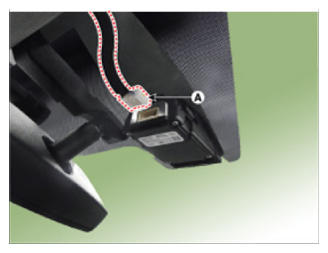

  3. Connect the front view camera unit connector.
    G14083788Courtesy of HYUNDAI MOTOR AMERICA
  4. Connect the negative (-) battery terminal.
