Repair Procedures: Removal
WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the center fascia panel.
(Refer to Body - "CENTER FASCIA PANEL ")

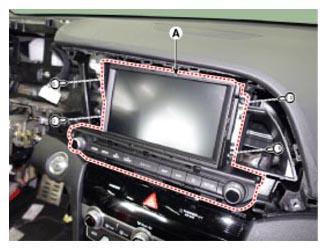

- Remove the audio head unit (A) after loosening the screws.

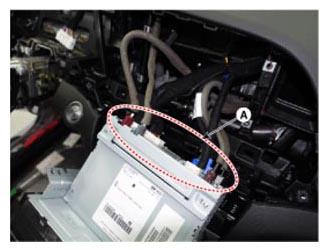

- Remove the audio head unit after disconnecting the connectors and cable (A).NOTE:
- When the compact disc is not ejected, do not remove it forcibly.
