Components And Components Location: Components

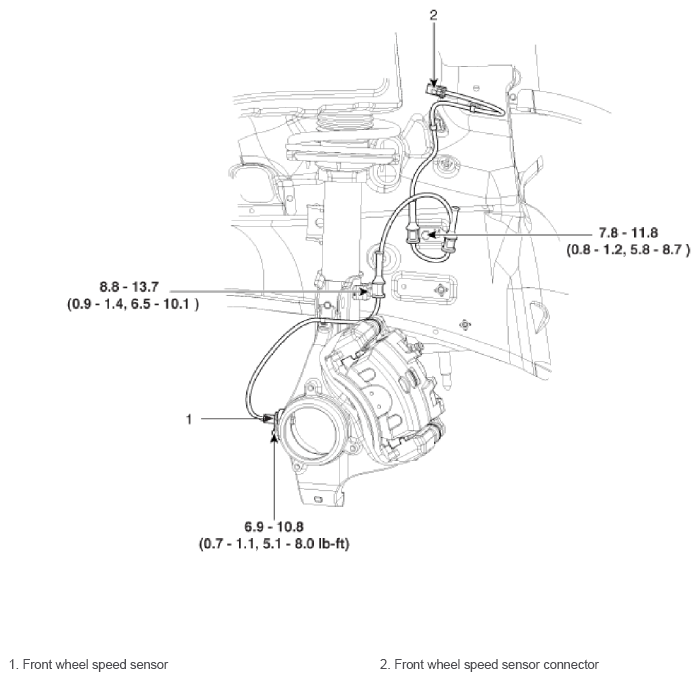

Fig 1: Front Wheel Speed Sensor Components With Torque Specification

G13032709

Courtesy of HYUNDAI MOTOR AMERICA
