Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform "set the steering feel torque to zero" using the GDS.

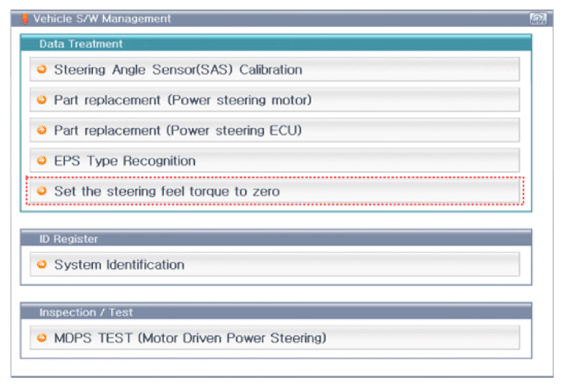

    G14077639Courtesy of HYUNDAI MOTOR AMERICA

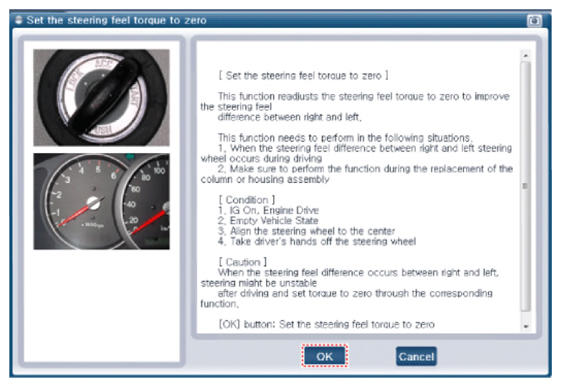

    G14077640Courtesy of HYUNDAI MOTOR AMERICA
  3. Conduct the "ASP Calibration" by GDS.

    (Refer to "DIAGNOSIS WITH GDS ")

  4. Conduct the "EPS Type Recognition" by GDS.

    (Refer to "DIAGNOSIS WITH GDS ")

  5. Check the DTC.
  6. Turn off the IGN switch and wait for 20 seconds or more. Then check the operation after starting the engine.
