Removal and Installation
- Disconnect the battery negative terminal.
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly System - "ENGINE ROOM UNDER COVER ")
- Drain the engine oil.
(Refer to "ENGINE OIL ")

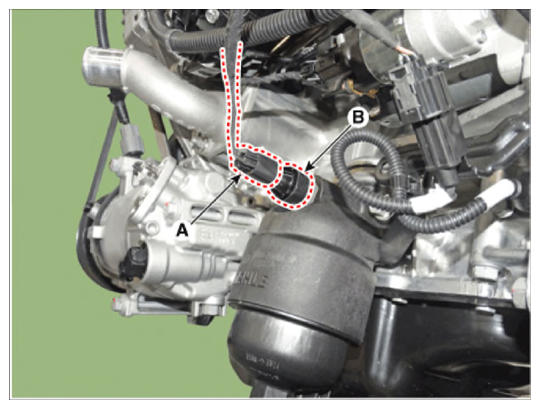

- Disconnect the oil pressure switch connector (A).
- Remove the oil pressure switch (B).
Tightening torque:
14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)
- Installation is in the reverse order of removal.NOTE:

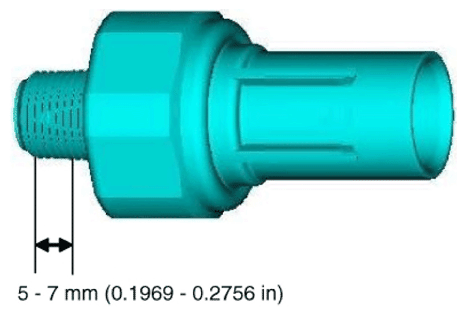

- When installing the oil pressure switch, apply seal lock to the thread.
Seal lock: THREEBOND 2403
Thickness: 0.2 - 0.4 mm (0.008 - 0.016 in)
