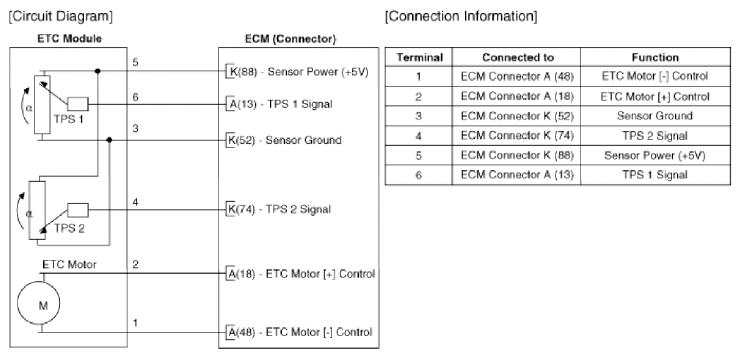

Home >> Hyundai >> 2019 >> Veloster Turbo >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram >> Notes
