Repair Procedures: Inspection
- Uplift the vehicle with lift.
- Remove the under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

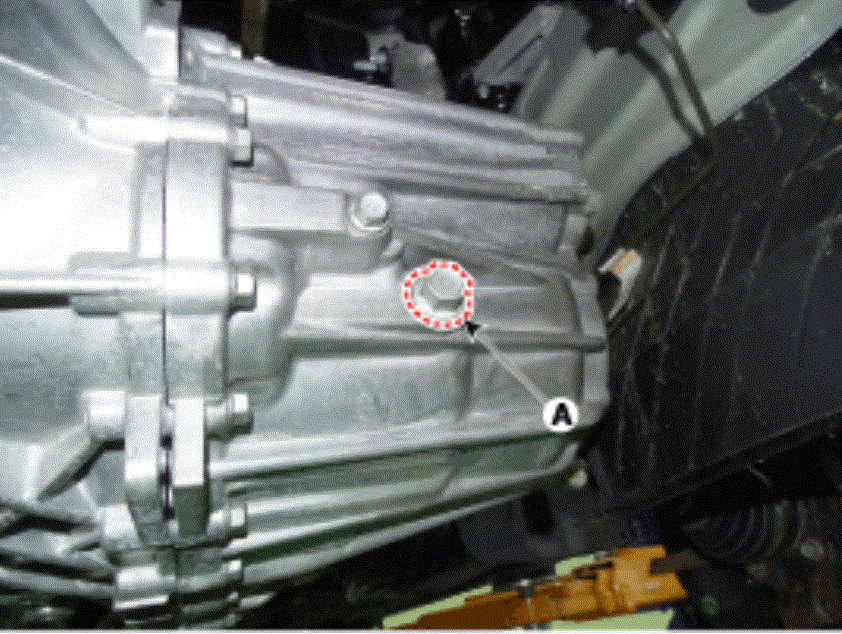

- Loosen the oil filler plug (A).

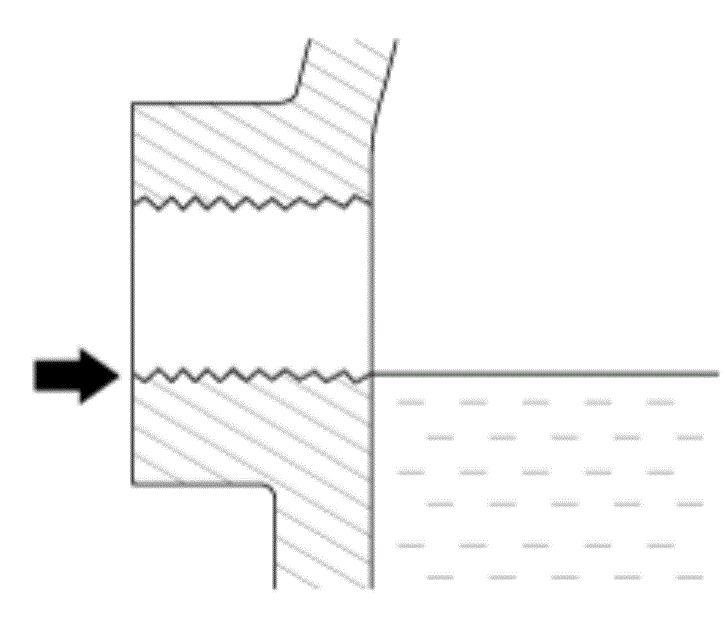

- Check the oil level.NOTE:
- For the accuracy, inspect the oil level after the oil is completely drained.
- Loosen the drain plug and wait for over 10 minutes until the oil is drained enough.
- After the inspection, inject the oil through the filler plug hole according to the specification. (Specified fluid: 1.8 - 1.9L (0.46 - 0.50 U.S.gal., 1.90 - 2.0 U.S.qt., 1.58 - 1.67 lmp qt.)
- While draining, some of the oil flows into the transmission part and the oil may be less than the specification by 0.1 - 0.15 L (0.03 - 0.04 U.S.gal., 0.10 - 0.16 U.S.qt., 0.09 - 0.13 lmp qt.) This is normal and additional oil injection is not required.
- Install the filler plug.
Tightening torque:
58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)
- Install the under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
