Repair Procedures: Inspection

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  2. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")
  3. Remove the battery and battery tray. (Refer to Engine Electrical System - "BATTERY ")
  4. Remove the engine control module (ECM). (Refer to Engine Control System - "ECM ")

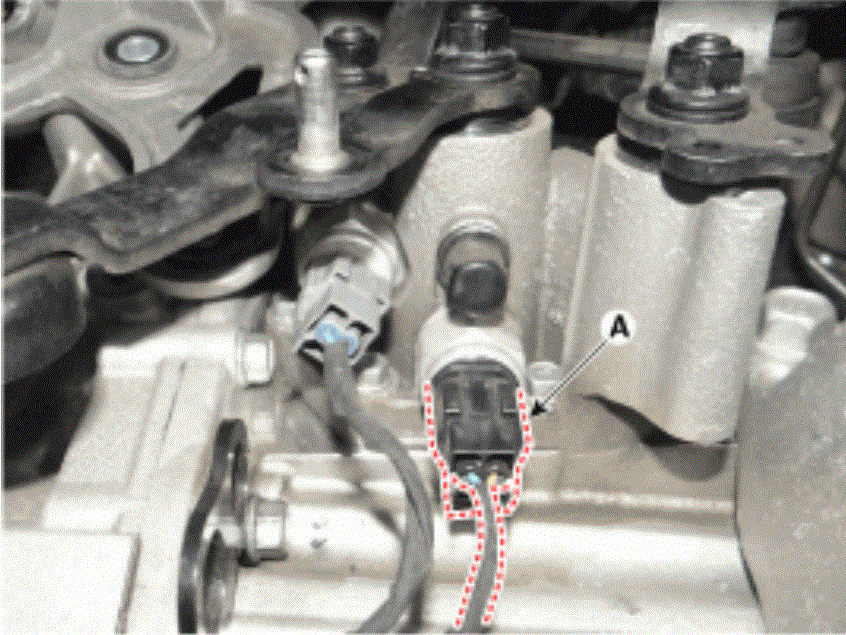

  5. Disconnect the back up lamp switch connector (A).
    G15472357Courtesy of HYUNDAI MOTOR AMERICA

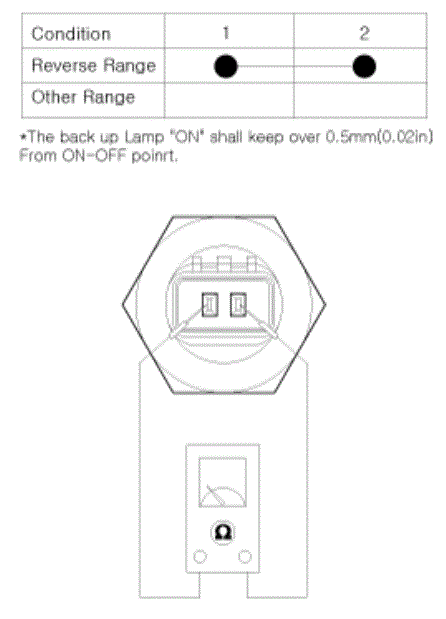

  6. Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
    G15472358Courtesy of HYUNDAI MOTOR AMERICA
