Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then remove battery (-) terminal.
  2. Remove the rear seat cushion. (Refer to Body - "REAR SEAT ASSEMBLY ")

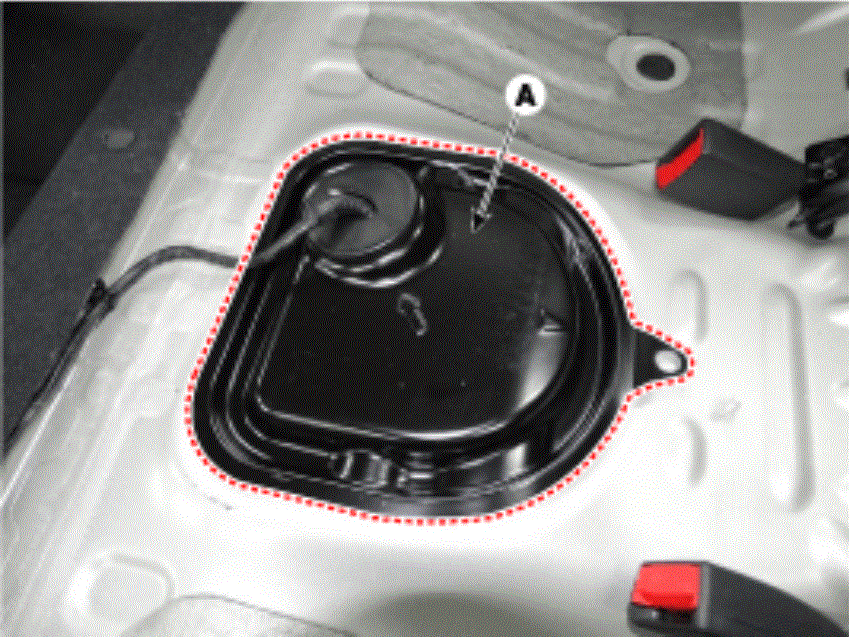

  3. Remove the fuel pump service cover (A).
    G15472248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Disconnect the fuel pressure sensor connector.

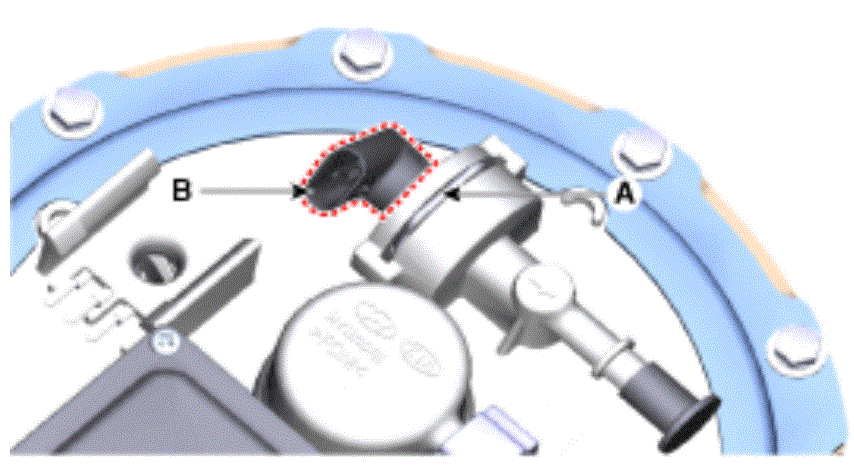

  5. Remove the fuel pressure sensor fixing pin (A).
  6. Remove the fuel pressure sensor (B) from the fuel pump.
    G15472249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
