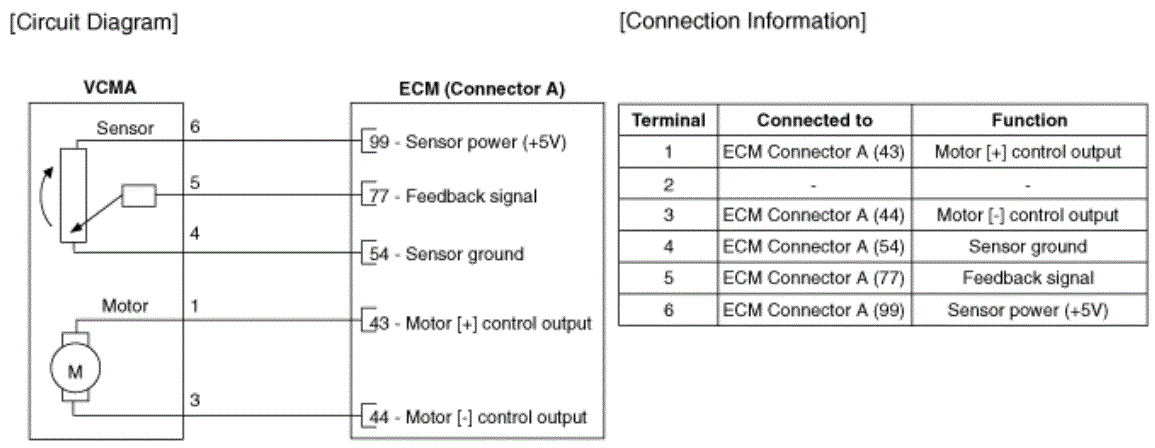

Home >> Hyundai >> 2019 >> Veloster N >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Variable Charge Motion Actuator (VCMA) >> Schematic Diagrams >> Schematic diagram >> Notes
