Repair Procedures: Inspection

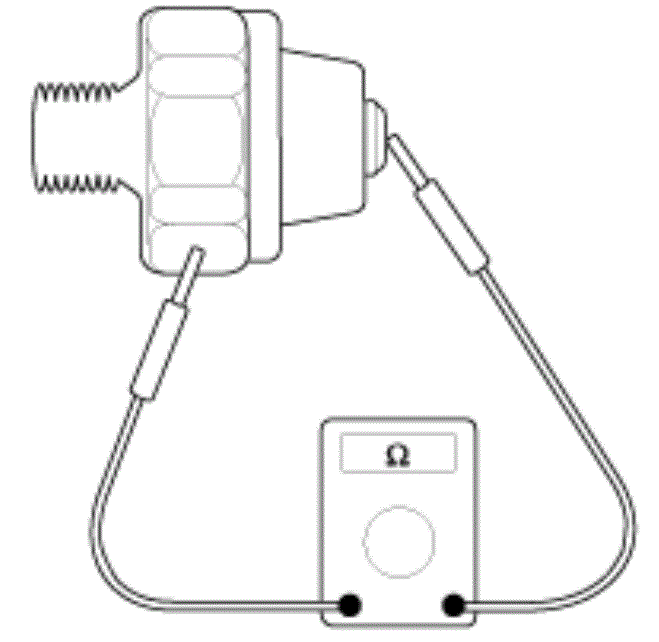

- Check the continuity between the terminal and the body with an ohmmeter.
If there is no continuity, replace the oil pressure switch.

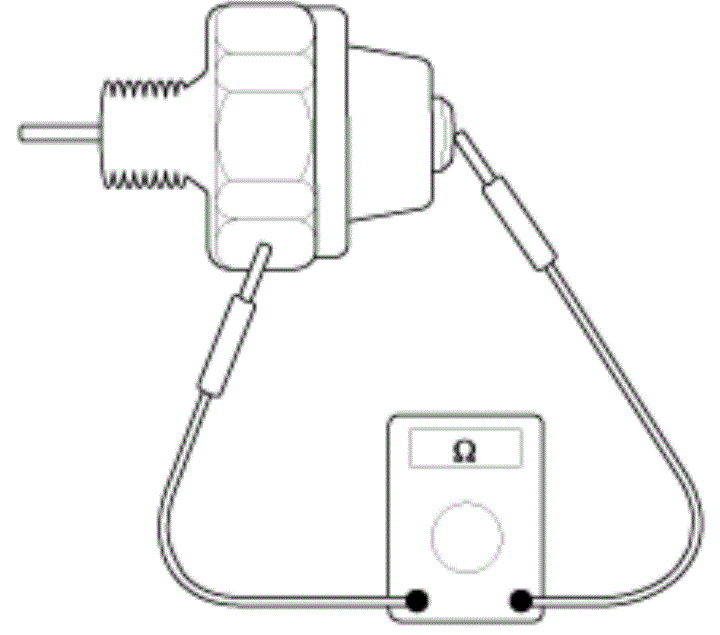

- Check the continuity between the terminal and the body when the fine wire is pushed. If there is continuity even when the fine wire is pushed, replace the switch.
- If there is no continuity when a 50 kPa (0.50 kgf/cm2
, 7.25 psi) is applied through the oil hole, the switch is operating properly.
Check for air leakage. If air leaks, the diaphragm is broken. Replace it.
