Repair Procedures: Removal

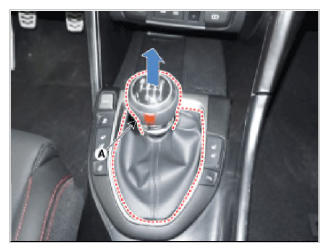

  1. Remove the shift lever knob & boots (A) pull both of it up.
    G13055682Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

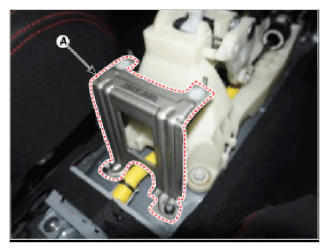

  3. Remove the bracket (A).
    G13055683Courtesy of HYUNDAI MOTOR AMERICA

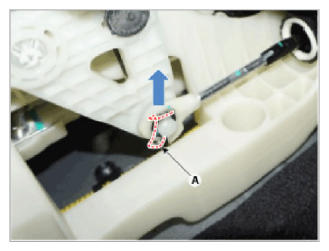

  4. Remove the snap pin (A).
    G13055684Courtesy of HYUNDAI MOTOR AMERICA

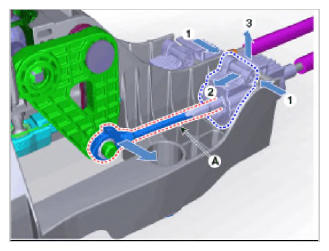

  5. Remove the select cable (A).
    G13055685Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the shift cable.

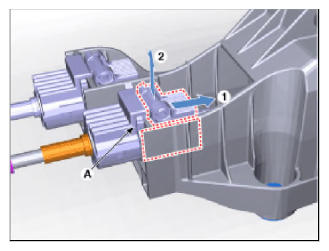

    1. Remove the cable socket (A) after release the lock.
      G13055686Courtesy of HYUNDAI MOTOR AMERICA

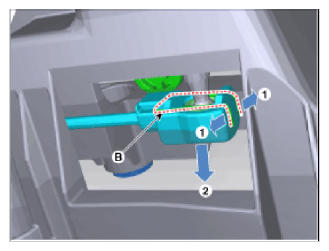

    2. Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.
    G13055687Courtesy of HYUNDAI MOTOR AMERICA

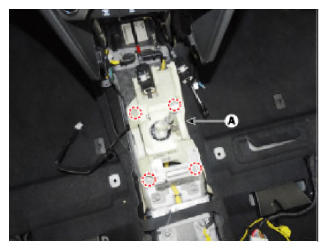

  7. Loosen the bolts (4-ea) and then shift lever assembly (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G13055688Courtesy of HYUNDAI MOTOR AMERICA
