Repair Procedures: Replacement

  1. Remove the front door window glass.

    (Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

  2. Remove the front door outside handle.

    (Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

  3. Remove the front door speaker

    (Refer to Body Electrical System - "SPEAKER ")

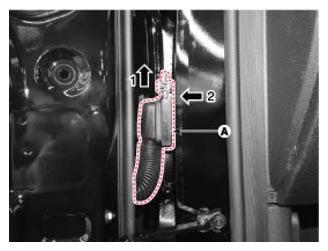

  4. Disconnect the front door main connector (A).
    G13029213Courtesy of HYUNDAI MOTOR AMERICA

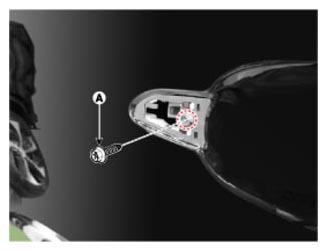

  5. Loosen the front door outside handle base mounting bolt (A).
    G13029214Courtesy of HYUNDAI MOTOR AMERICA

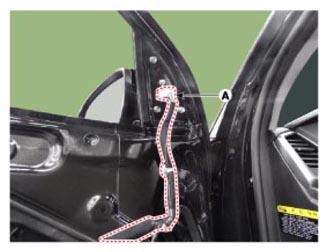

  6. Disconnect the outside rear view mirror connector (A).
    G13029215Courtesy of HYUNDAI MOTOR AMERICA

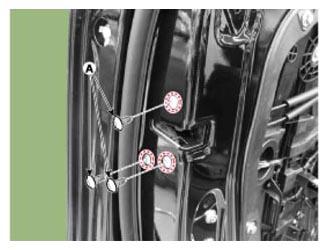

  7. Loosen the front door latch mounting screws (A).

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb-ft)

    G13029216Courtesy of HYUNDAI MOTOR AMERICA

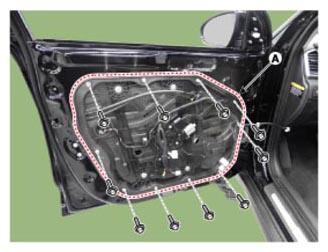

  8. Loosen the mounting bolts and remove the front door module (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G13029217Courtesy of HYUNDAI MOTOR AMERICA

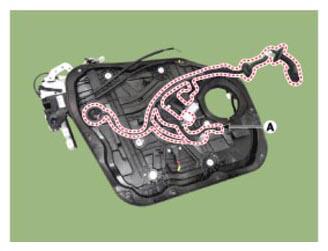

  9. Disconnect the connectors and front door module wiring harness (A).
    G13029218Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the front door latch assembly.

    (Refer to Front Door - " FRONT DOOR LATCH  ")

  11. Remove the front power window motor.

    (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

  12. Remove the side impact sensor.

    (Refer to Restraint - "SIDE IMPACT SENSOR (SIS) ")

  13. Install in the reverse order of removal.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Make sure the door locks/unlocks and opens/closes properly.
