Components Location

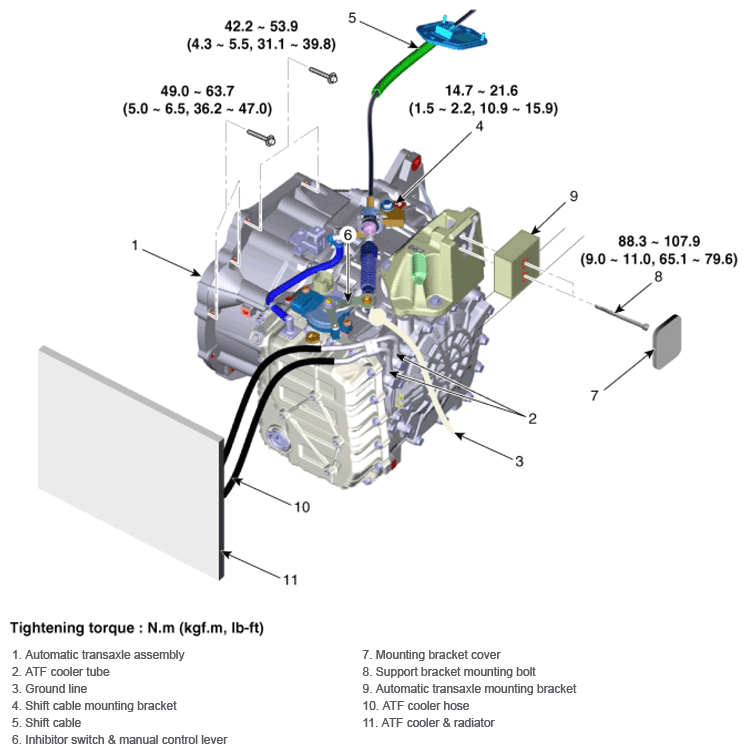

Fig 1: Automatic Transaxle Components Location With Torque Specification (1 Of 2)
G13035201Courtesy of HYUNDAI MOTOR AMERICA

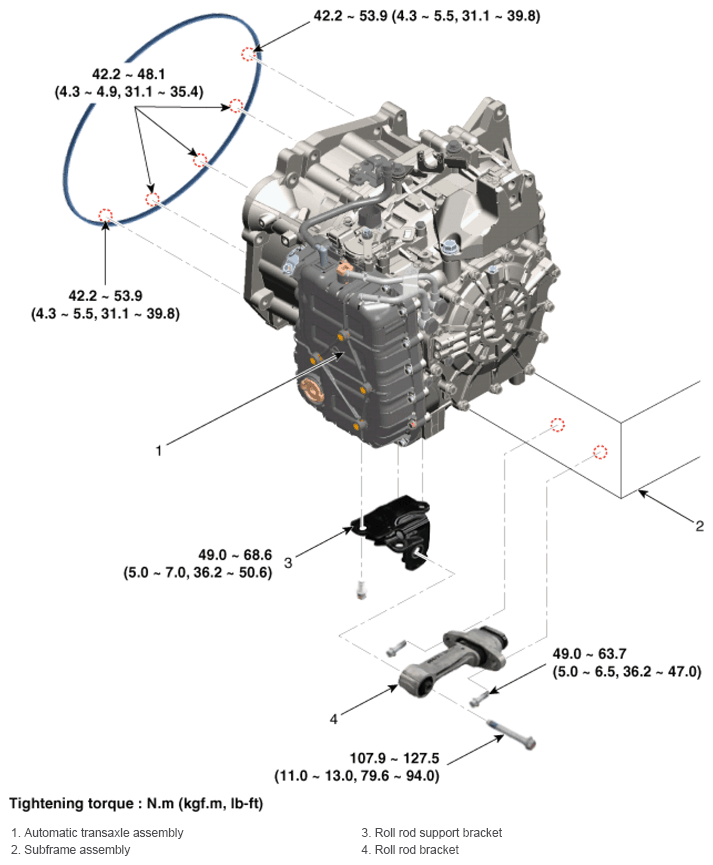

Fig 2: Automatic Transaxle Components Location With Torque Specification (2 Of 2)
G13035202Courtesy of HYUNDAI MOTOR AMERICA
