Repair Procedures: Inspection

  1. Turn ignition switch OFF.
  2. Remove the battery and battery tray.

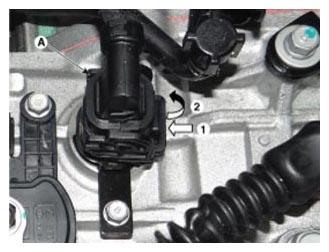

  3. Disconnect the solenoid valve connector (A).
    G13035277Courtesy of HYUNDAI MOTOR AMERICA
  4. Measure resistance between solenoid valve terminals.
  5. Check that the resistance is within the specification.
    NOTE:
    • If DTC about the input/output speed sensor is found, replace according to the procedures removal/installation.
