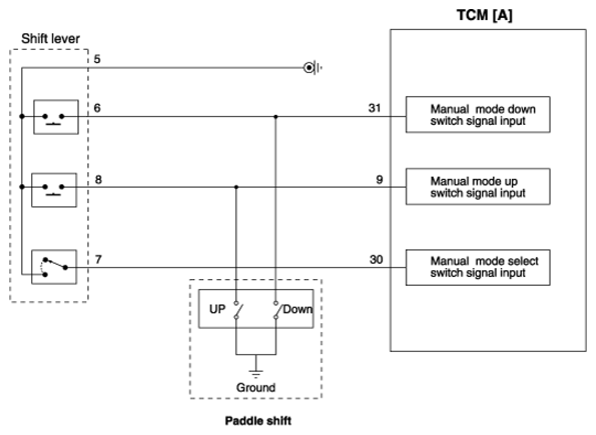

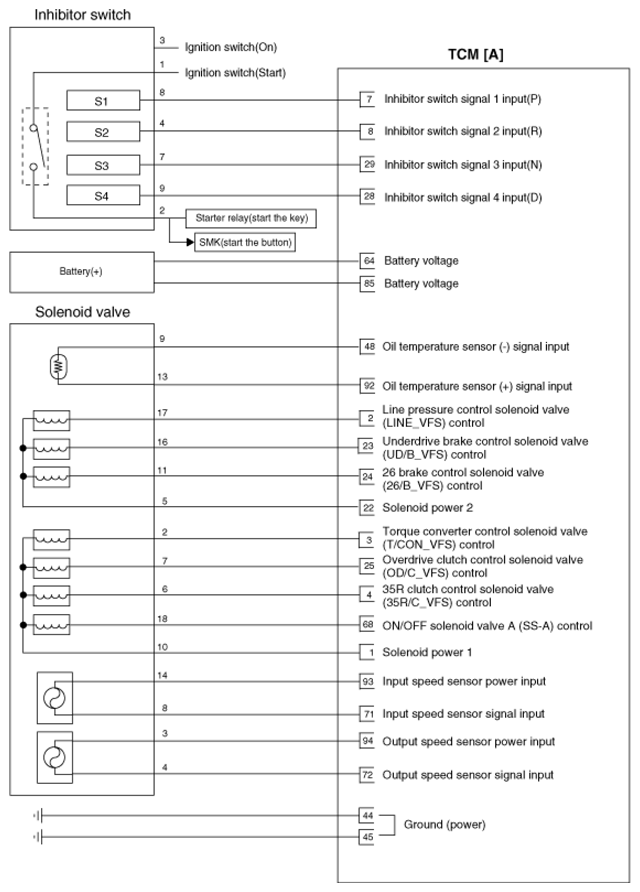

Home >> Hyundai >> 2019 >> Tucson SEL, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 2.4L >> Transaxle Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
