Components Location

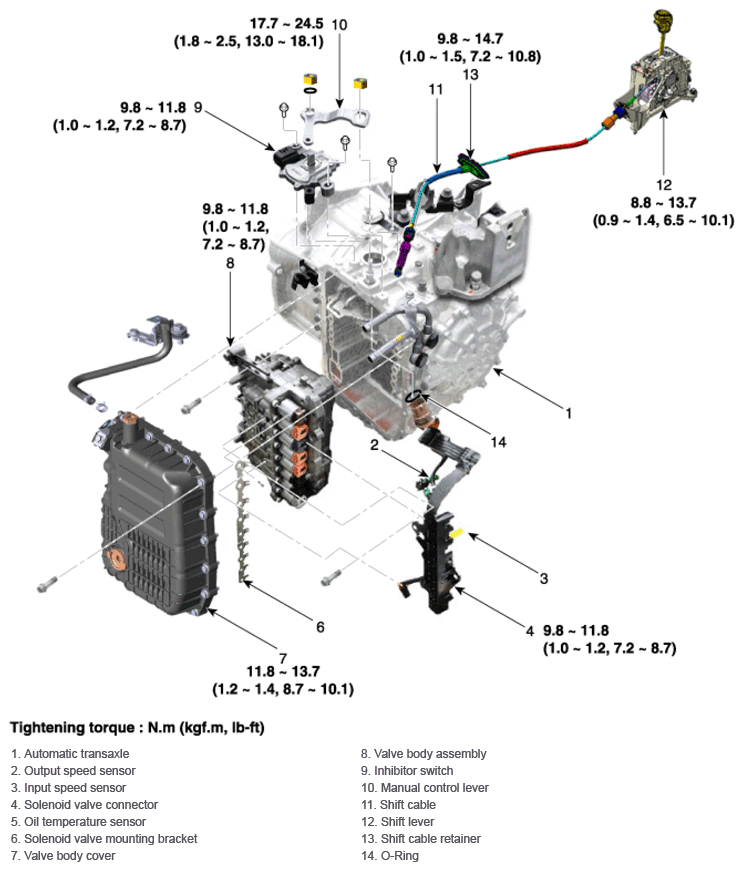

Fig 1: Automatic Transaxle Control System Components Location With Torque Specification (1 Of 2)
G13021150Courtesy of HYUNDAI MOTOR AMERICA

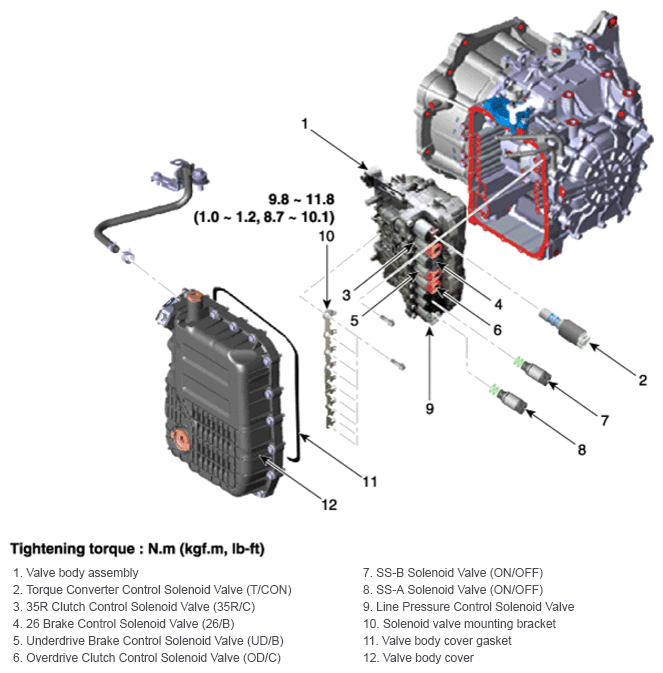

Fig 2: Automatic Transaxle Control System Components Location With Torque Specification (2 Of 2)
G13021151Courtesy of HYUNDAI MOTOR AMERICA

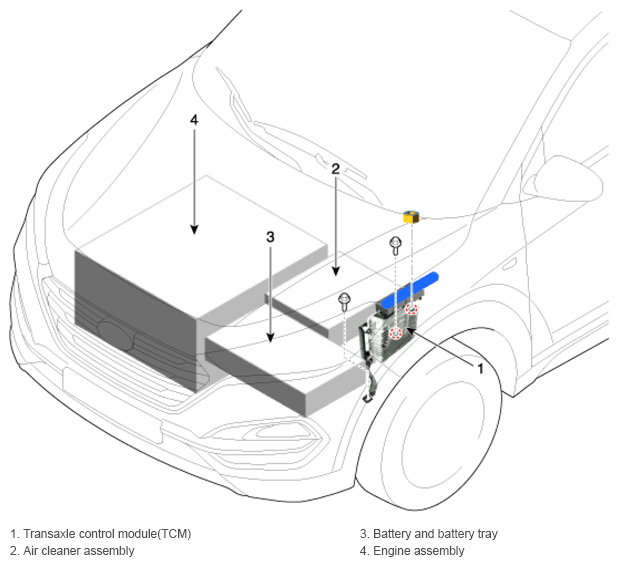

G13021152Courtesy of HYUNDAI MOTOR AMERICA
