Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

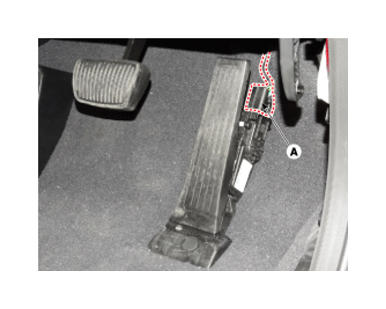

  2. Disconnect the accelerator position sensor connector (A).
    G12633329Courtesy of HYUNDAI MOTOR AMERICA

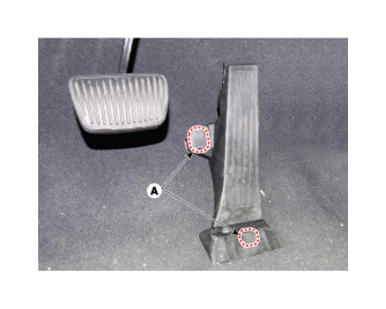

  3. Remove the mounting cap (A).
    G12633330Courtesy of HYUNDAI MOTOR AMERICA

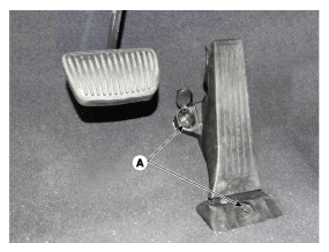

  4. Remove the installation bolt (A), and then remove the accelerator pedal module.
    G12633331Courtesy of HYUNDAI MOTOR AMERICA
