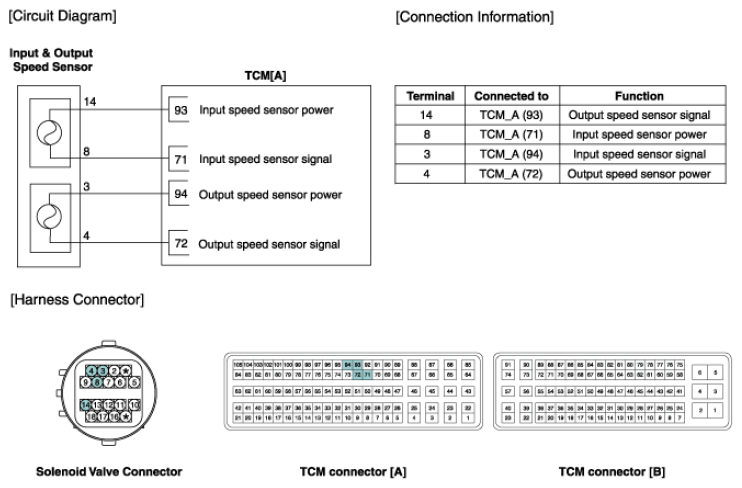

Home >> Hyundai >> 2019 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (PHEV) >> Output Speed Sensor >> Schematic Diagrams >> Circuit Diagram
