Home >> Hyundai >> 2019 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System (PHEV) >> Oil Pump >> Components And Components Location >> Components

Components And Components Location: Components

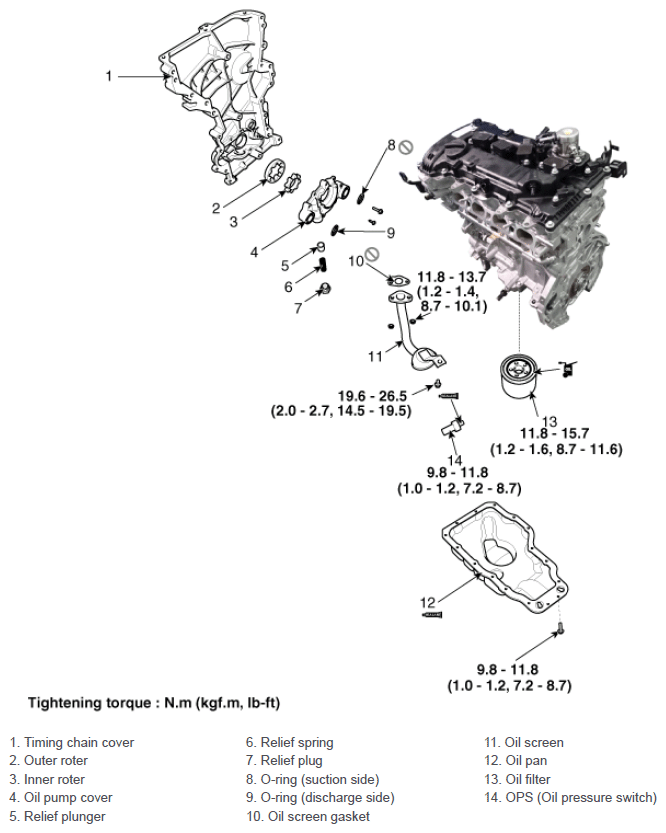

Fig 1: Locating Oil Pump Components With Torque Specification

G12786778

Courtesy of HYUNDAI MOTOR AMERICA
