Components And Components Location: Components

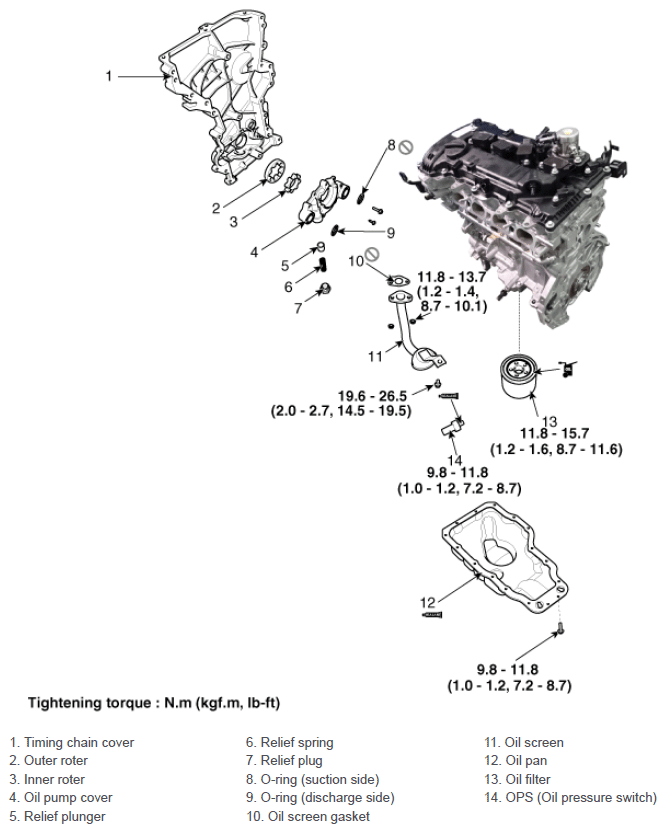

Fig 1: Lubrication System Components Location With Torque Specification

G12786773

Courtesy of HYUNDAI MOTOR AMERICA
