Trunk Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to "TRUNK LID TRIM ")

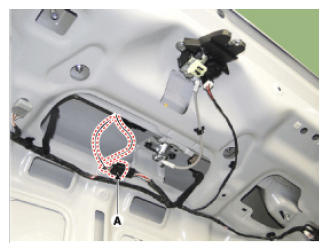

  3. Disconnect the trunk open switch connector (A).
    G12794939Courtesy of HYUNDAI MOTOR AMERICA

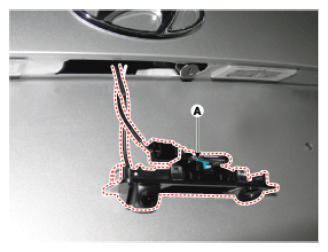

  4. Remove the trunk open switch after disengaging mounting clip.
    G12794940Courtesy of HYUNDAI MOTOR AMERICA
