Neutralization Status Check

  1. Connect the cable of GDS to the Data Link Connector in Driver Side Crash Pad Lower Panel.

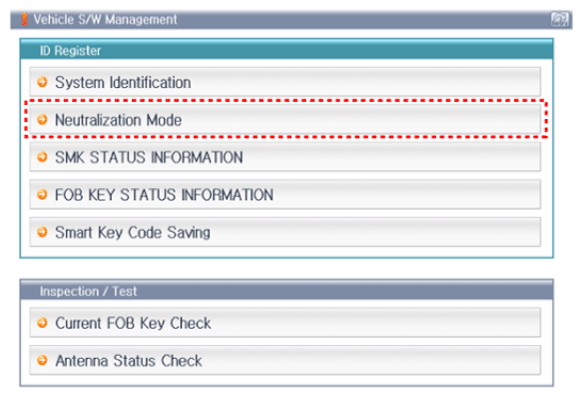

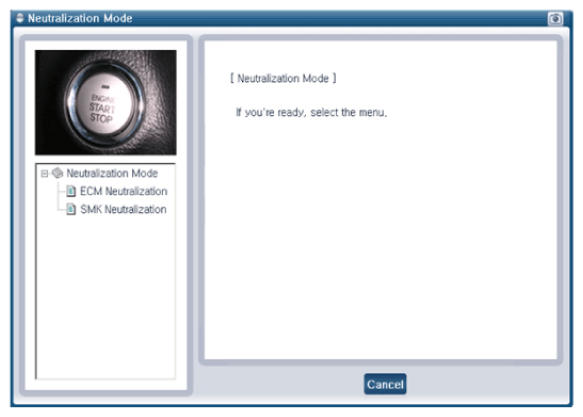

  2. After IG ON, select the "Neutralization Mode".
    G12794956Courtesy of HYUNDAI MOTOR AMERICA
    G12794957Courtesy of HYUNDAI MOTOR AMERICA

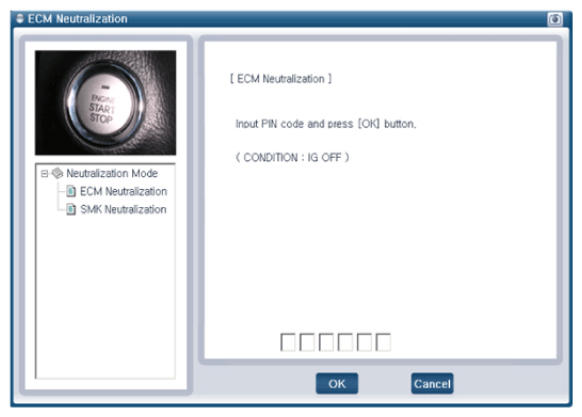

    G12794958Courtesy of HYUNDAI MOTOR AMERICA

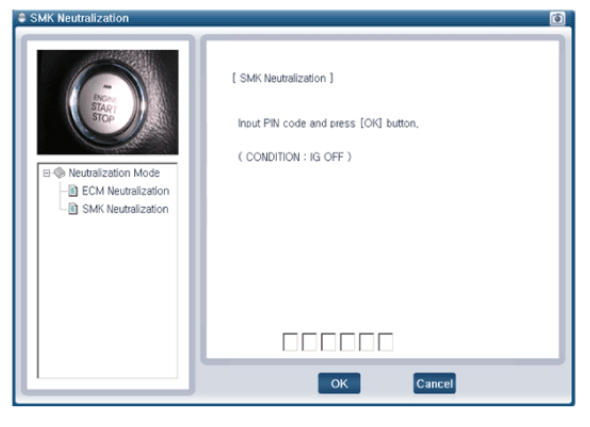

    G12794959Courtesy of HYUNDAI MOTOR AMERICA
