Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly and air duct. (Refer to "AIR CLEANER ")
  2. Remove the Hybrid Power Control Unit (HPCU) assembly.

    (Refer to "HPCU ")

  3. Remove the under cover. (Refer to "ENGINE ROOM UNDER COVER ")
  4. Remove the valve body assembly. (Refer to "VALVE BODY ")

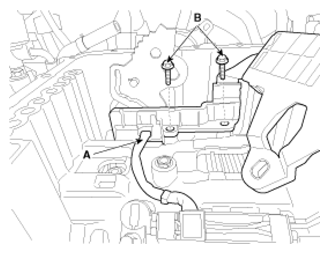

  5. Disconnect the input/output speed sensor connector (A).
  6. Remove the solenoid valve connector assembly after removing bolts (B).
    G12763222Courtesy of HYUNDAI MOTOR AMERICA

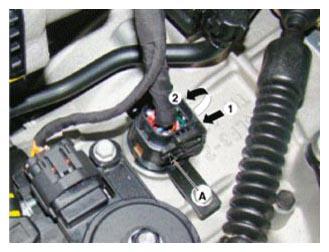

  7. Disconnect the main connector (A).
    1. Press the lock
    2. Raise the lever
    G12763223Courtesy of HYUNDAI MOTOR AMERICA

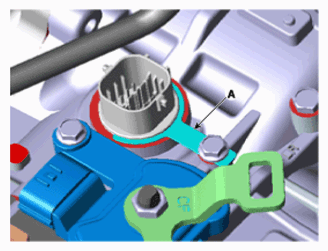

  8. Remove the clip (A) after removing the bolt.
    G12763224Courtesy of HYUNDAI MOTOR AMERICA

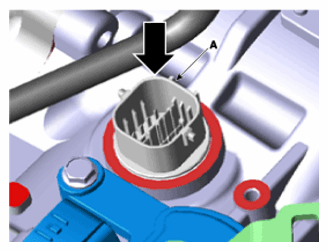

  9. Disconnect the main connector (A) from the transaxle.
    G12763225Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Replace the O-Ring (A) before reinstalling the main connector.
    G12763226Courtesy of HYUNDAI MOTOR AMERICA
