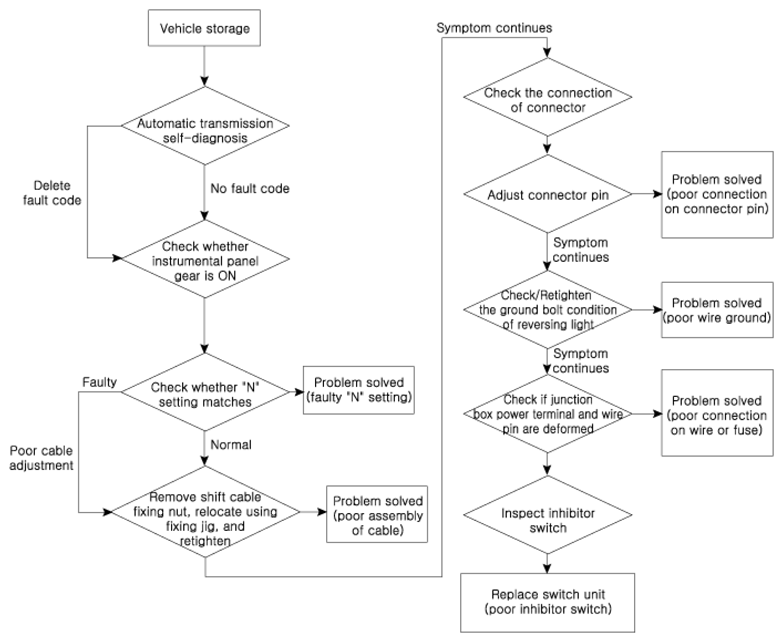

Inspection Flow

WARNING: This page is about a different car, the 2018 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
G12763361Courtesy of HYUNDAI MOTOR AMERICA
