Circuit Diagram

WARNING: This page is about a different car, the 2018 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

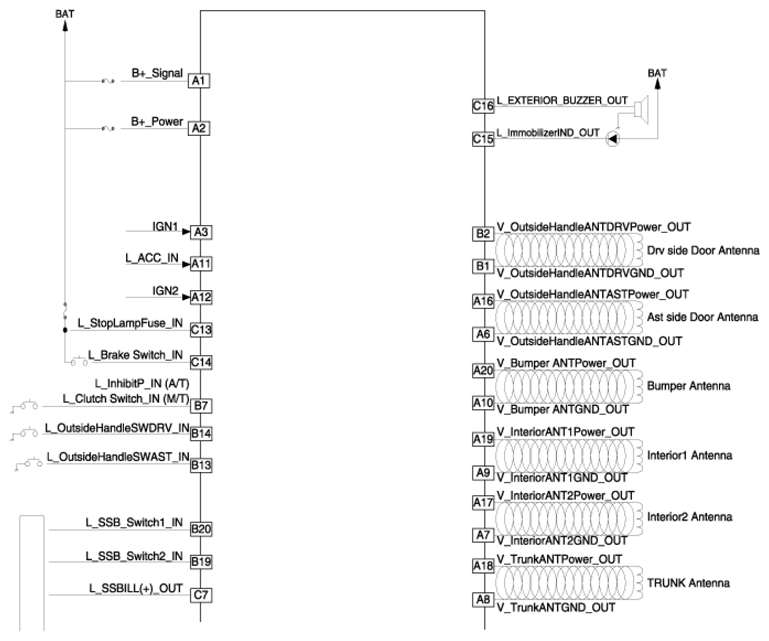

G12764961Courtesy of HYUNDAI MOTOR AMERICA

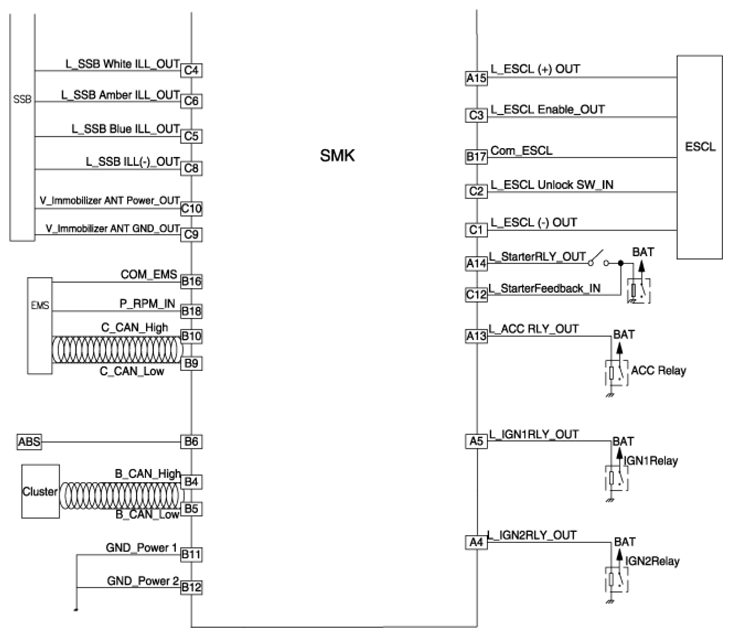

G12764962Courtesy of HYUNDAI MOTOR AMERICA
