Repair Procedures: Removal: Buzzer

WARNING: This page is about a different car, the 2018 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.

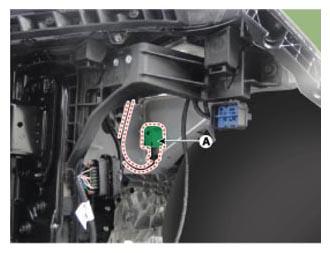

  3. Remove the buzzer (A) after disconnect the connect.
    G12764969Courtesy of HYUNDAI MOTOR AMERICA
