Trunk Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

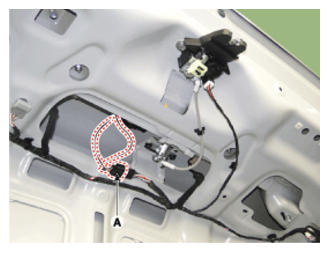

  3. Disconnect the trunk open switch connector (A).
    G12640597Courtesy of HYUNDAI MOTOR AMERICA

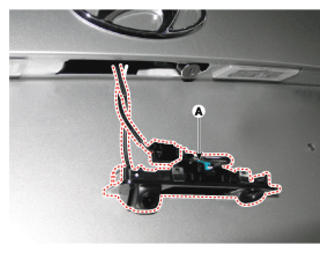

  4. Remove the trunk open switch after disengaging mounting clip.
    G12640598Courtesy of HYUNDAI MOTOR AMERICA
