Trunk Switch

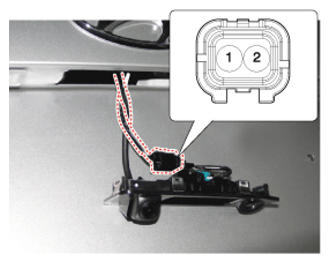

  1. Check for continuity between the tailgate latch terminals.
    G12640602Courtesy of HYUNDAI MOTOR AMERICA

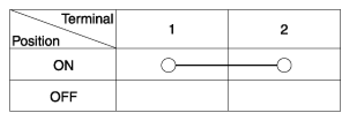

  2. If continuity is not specified, inspect the switch
    G12640603Courtesy of HYUNDAI MOTOR AMERICA
