Neutralization Status Check

  1. Connect the cable of GDS to the Data Link Connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

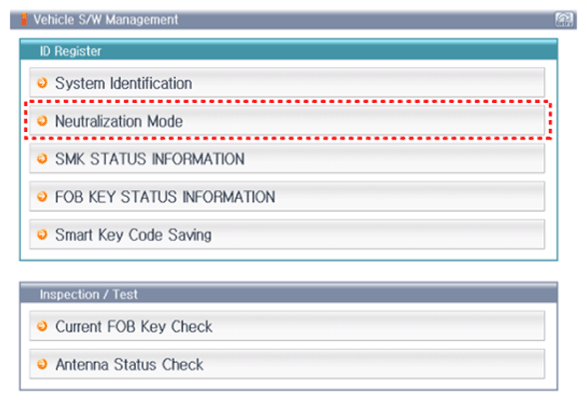

    G12640615Courtesy of HYUNDAI MOTOR AMERICA

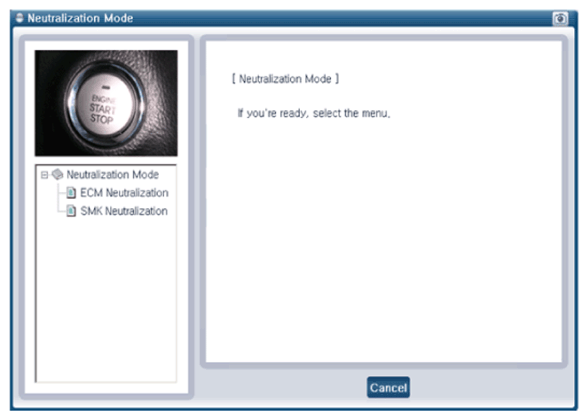

    G12640616Courtesy of HYUNDAI MOTOR AMERICA

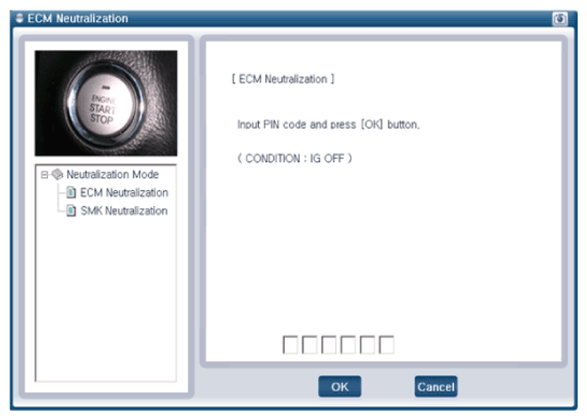

    G12640617Courtesy of HYUNDAI MOTOR AMERICA

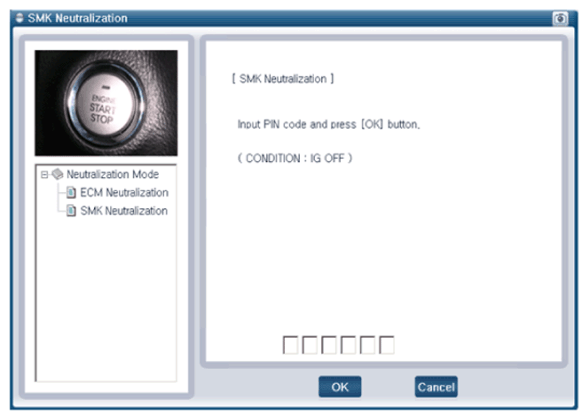

    G12640618Courtesy of HYUNDAI MOTOR AMERICA
