Hyundai
>>
2019
>>
Sonata Limited 2.0T
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L (Except HEV)
>>
E-CVVT Motor
>>
Troubleshooting
>>
Signal Waveform

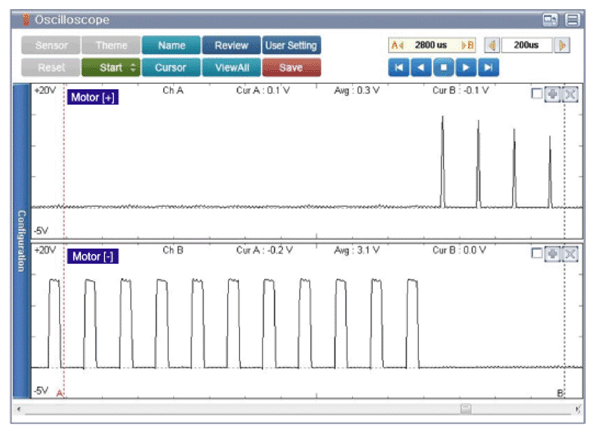

Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA

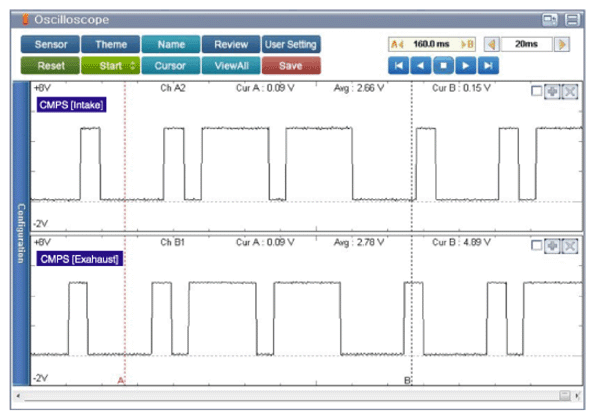

Courtesy of HYUNDAI MOTOR AMERICA
There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
