Trunk Open Switch

WARNING: This page is about a different car, the 2018 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to "TRUNK LID TRIM ")

  3. Disconnect the trunk open switch connector (A).
    G12764971Courtesy of HYUNDAI MOTOR AMERICA

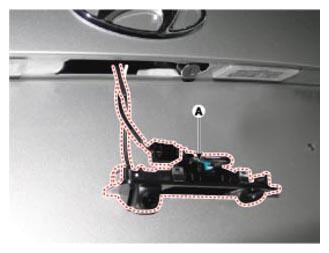

  4. Remove the trunk open switch after disengaging mounting clip.
    G12764972Courtesy of HYUNDAI MOTOR AMERICA
