Neutralization Status Check

WARNING: This page is about a different car, the 2018 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

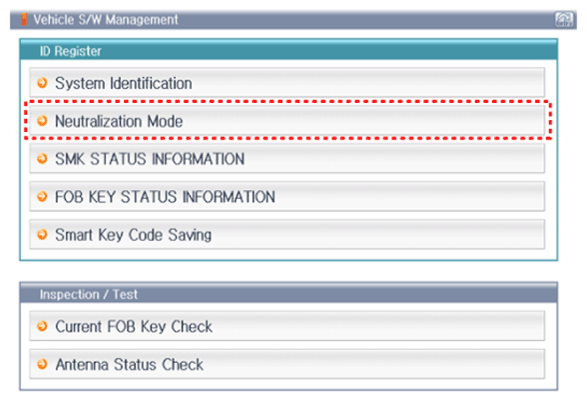

    G12764989Courtesy of HYUNDAI MOTOR AMERICA

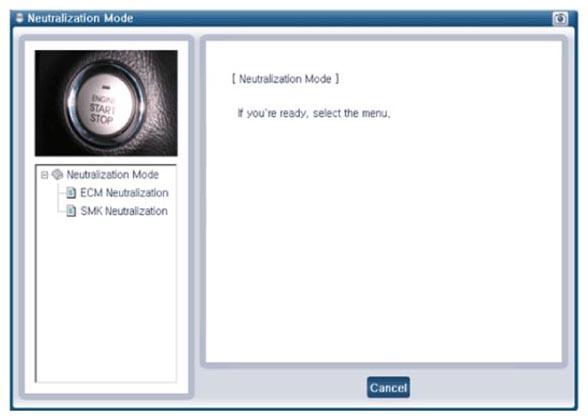

    G12764990Courtesy of HYUNDAI MOTOR AMERICA

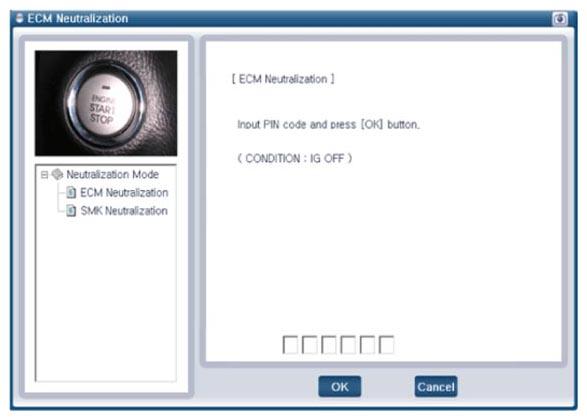

    G12764991Courtesy of HYUNDAI MOTOR AMERICA

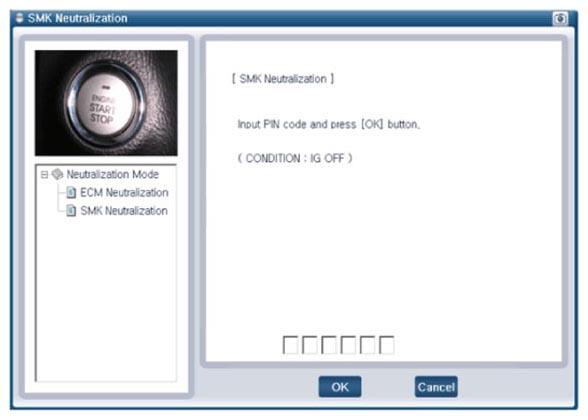

    G12764992Courtesy of HYUNDAI MOTOR AMERICA
