Section 11 (Coupling Assembly)
>>
Pressure Sensor
>>
Schematic Diagrams
>>

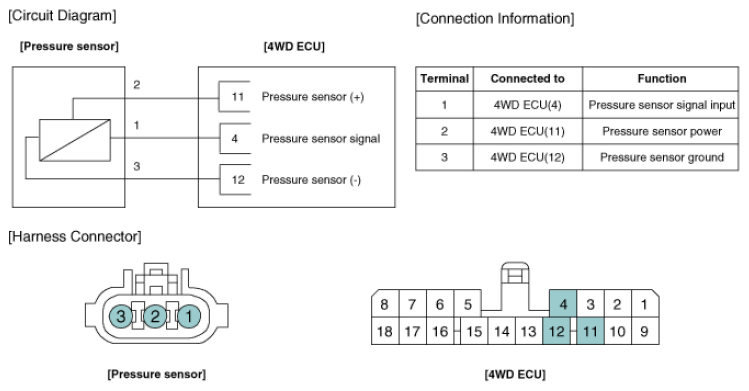

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
