Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

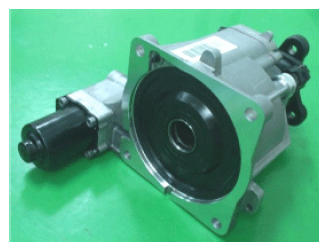

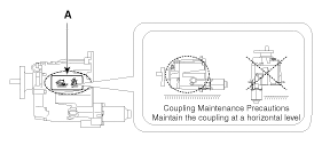

NOTE: Coupling Maintenance Precautions
Maintain the coupling at a horizontal level.

Refer to the handling caution labell (A) when servicing the coupling (removal, installation, replacement, etc.).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

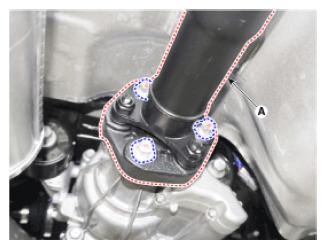

Loosen the rear propeller shaft assembly mounting bolts and then removing the rear propeller shaft assembly (A).
Tightening torque:

49.0 - 68.6N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Using a flat tool, separate the propeller shaft from 4WD coupling assembly.

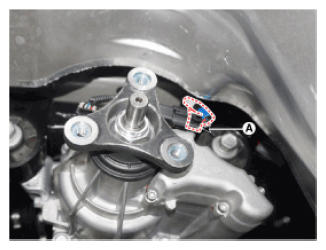

Disconnect the oil hydraulic motor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

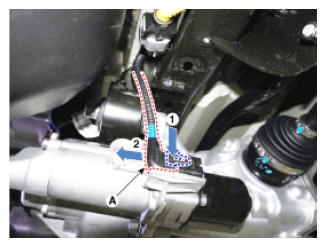

Disconnect the extension wiring connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

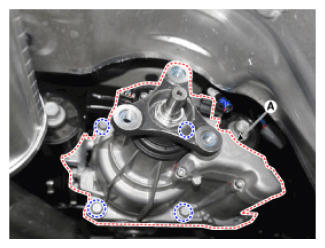

Loosen the coupling assembly mounting bolts.
Tightening torque:

58.9 - 64.7 N.m (5.8 - 6.6 kgf.m, 41.9 - 47.7 lb-ft)
Using a flat tool, separate the 4WD coupling assembly (A) from the rear differential carrier assembly.

Courtesy of HYUNDAI MOTOR AMERICA
