Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim.

    (Refer to REPLACEMENT ")

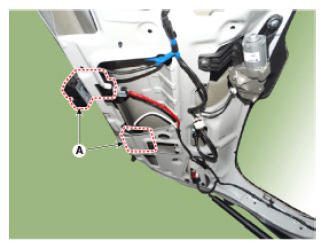

  3. Remove the tail gate latch and PCU (A) after loosening the mounting bolts.
    G12999378Courtesy of HYUNDAI MOTOR AMERICA
