Smart Key Code Saving

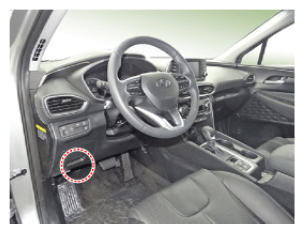

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G12999012Courtesy of HYUNDAI MOTOR AMERICA

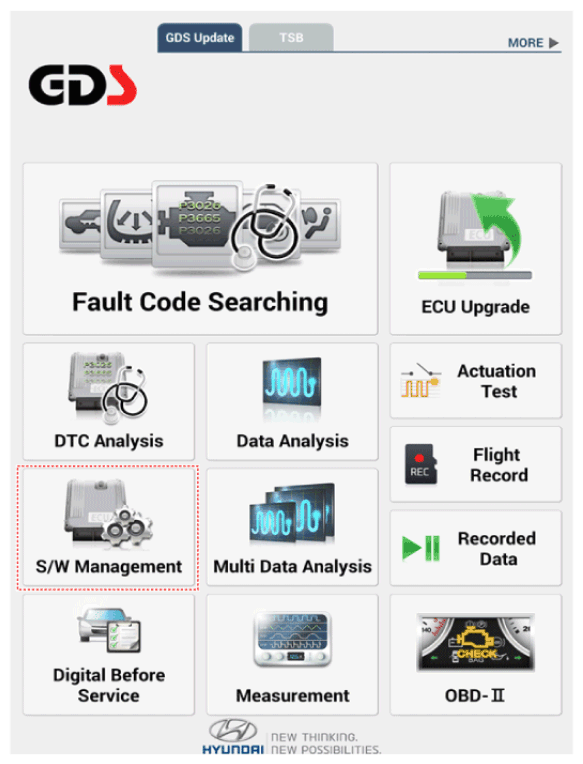

  2. Select the 'S/W Management' and 'Car model'.
    G12999013Courtesy of HYUNDAI MOTOR AMERICA

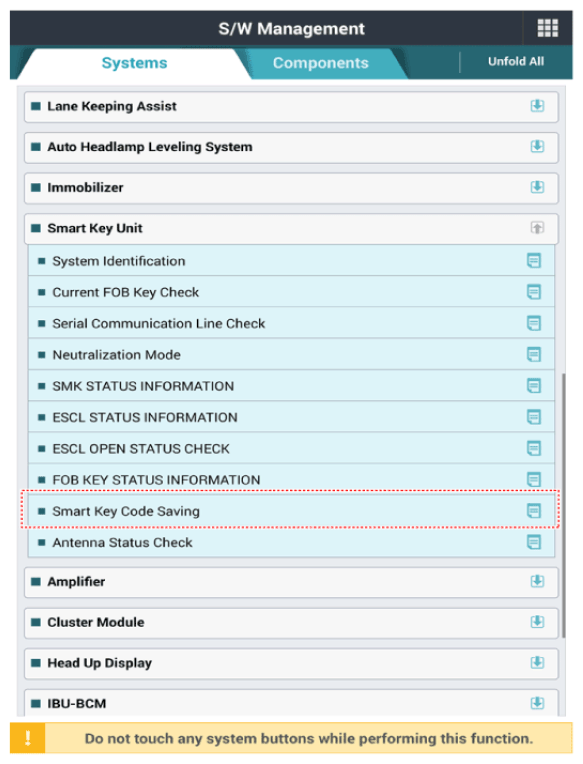

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G12999014Courtesy of HYUNDAI MOTOR AMERICA

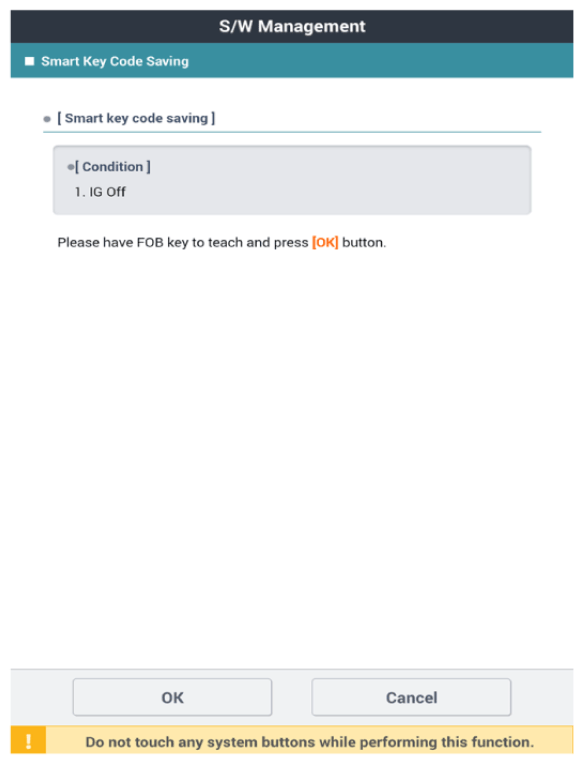

  4. Follow the instructions on the screen.
    G12999015Courtesy of HYUNDAI MOTOR AMERICA
