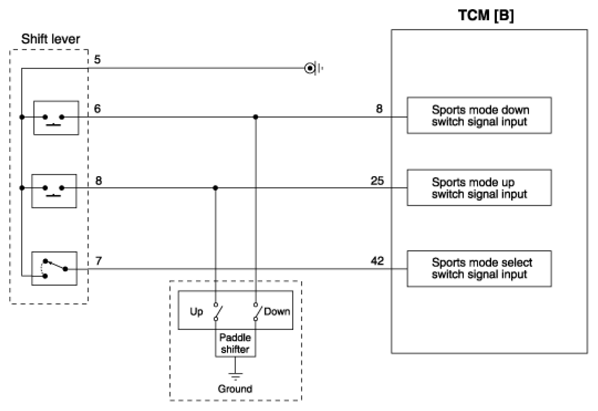

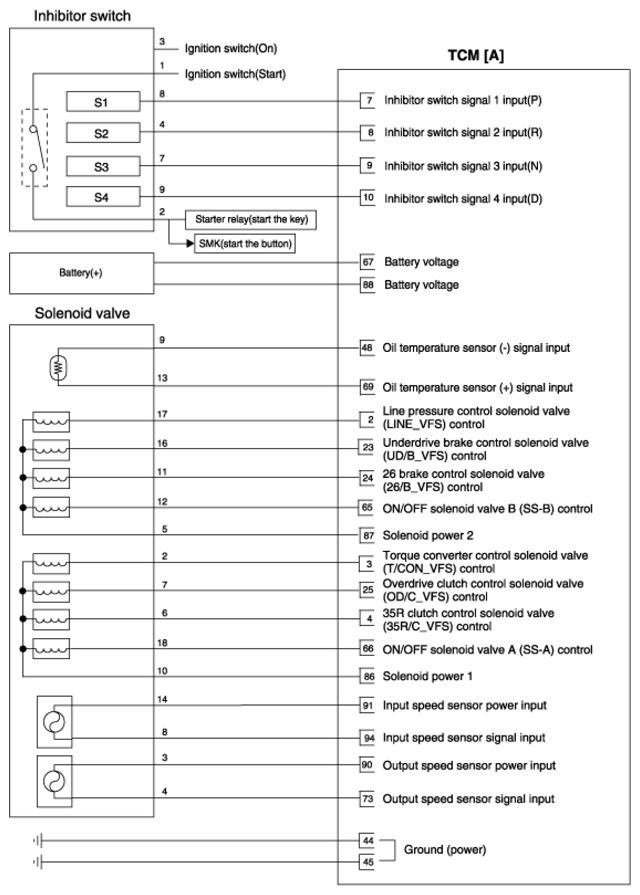

Home >> Hyundai >> 2019 >> Santa Fe SEL Plus, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L >> Transaxle Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
