Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER "

  2. Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).

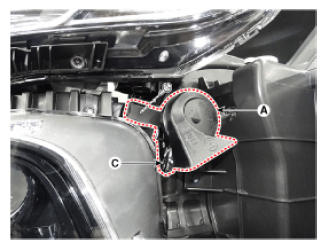

    G12998958Courtesy of HYUNDAI MOTOR AMERICA

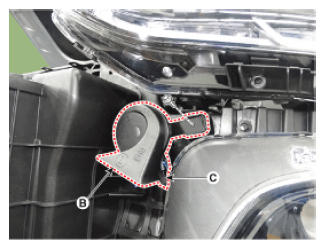

    G12998959Courtesy of HYUNDAI MOTOR AMERICA
