Front Door Lock Module Inspection
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
- Remove the front door module.
(Refer to Body - "FRONT DOOR MODULE ")

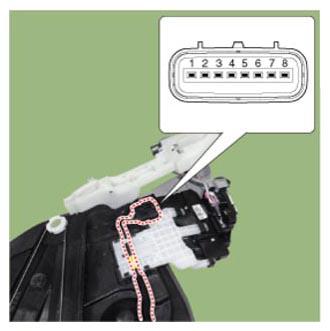

- Disconnect the connector from the actuator.CENTRAL LOCK - PIN INFORMATION
No Pin Information LH RH 1 - AJAR switch 2 Motor 1 COM 3 Motor 2 Lock/Unlock switch 4 - - 5 - - 6 Lock/Unlock switch Motor 2 7 COM Motor 1 8 AJAR switch - DEAD LOCK - PIN INFORMATIONNo Pin Information LH RH 1 Motor 1 AJAR switch 2 Motor 2 COM 3 Motor 3 Lock/Unlock switch 4 Key unlock switch Key lock switch 5 Key lock switch Key unlock switch 6 Lock/Unlock switch Motor 3 7 COM Motor 2 8 AJAR switch Motor 1 - Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
[Central Lock (Without key switch)]

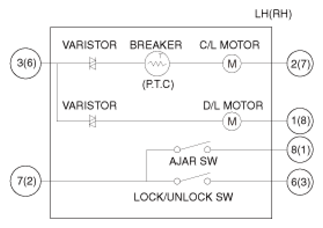

[Dead Lock (Without Key Switch)]

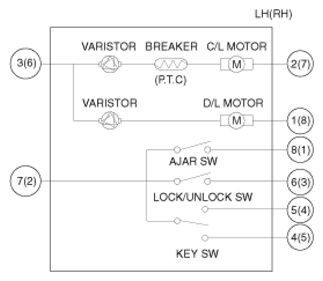

[Dead Lock (With Key Switch)]
[Central Lock]
CENTRAL LOCK OPERATION DESCRIPTION (LH/RH)Operation Central Lock Central Unlock Terminal 2 (7) + (-) -(+) 3 (6) -(+) +(-) 6 (2) & 7 (3) ON → OFF OFF → ON 7 (1) & 8 (2) Door open & Hall-latching (1st detent) = ON Full-latching (2nd close) = OFF [Dead Lock]
DEAD LOCK OPERATION DESCRIPTION (LH/RH)Operation Central Lock Central Unlock Dead Lock Dead Unlock Terminal 1 (8) - + + - 2 (7) + - - + 3 (6) - + - + 6 (2) & 7 (3) ON → OFF OFF → ON 7 (1) & 8 (2) Door open & Half latching (1st detent) = ON Full-latching (2nd close) = OFF
