Repair Procedures: Disassembly

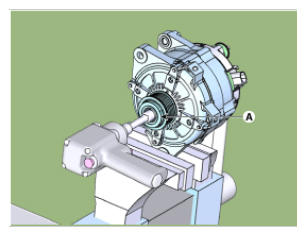

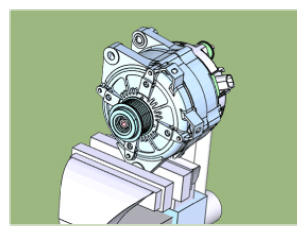

Insert an aluminum plate and fix the alternator on the vise.
NOTE:
- Fixing the alternator housing may damage the stator coil. Therefore, tighten the fixing bolts on the front and rear housings instead.
Courtesy of HYUNDAI MOTOR AMERICA
Use an impact wrench to loosen the pulley nuts and remove the pulley (A).

Courtesy of HYUNDAI MOTOR AMERICA

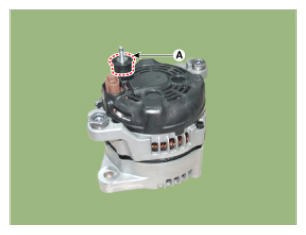

Remove the bush (A).

Courtesy of HYUNDAI MOTOR AMERICA

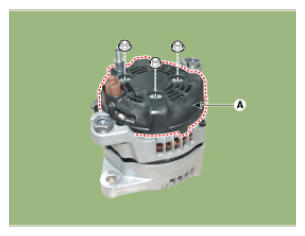

Remove the rear cover (A).
Tightening torque:

3.8 - 5.3 N.m (0.39 - 0.54 kgf.m, 2.8 - 3.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

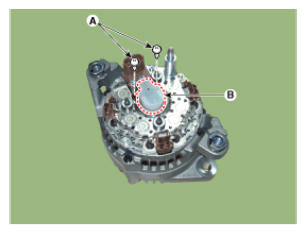

Loosen the fixing bolts (A) and remove the brush holder assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

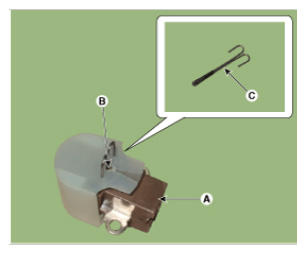

Prepare a fixing pin (C) to be inserted to the hole (B) in order to fix the brush on the brush holder (A).

Courtesy of HYUNDAI MOTOR AMERICA

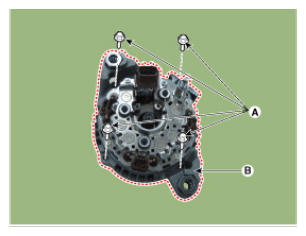

Loosen the four through bolts (A).
Tightening torque:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

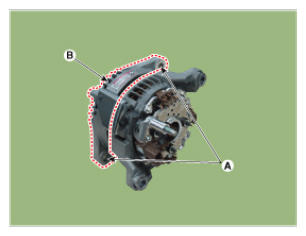

Hit the (A) area on the alternator front case with a rubber hammer to remove the front housing (B).

Courtesy of HYUNDAI MOTOR AMERICA

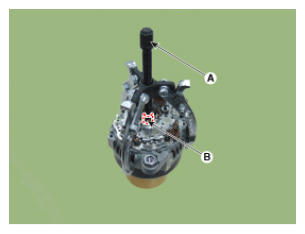

Fix a tripod gear pulley (A) at the center of the rotor shaft and rear housing to remove the rotor (B) from the rear housing.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Place a soft cloth under the rotor to prevent the slip ring or fan from being damaged when you drop the rotor.
- Fix the rotor on the cylindrical support to remove the rotor more easily.
NOTE:

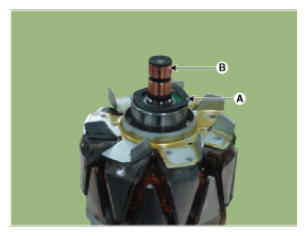

- If you remove the rear housing, you can see a wave washer (A). Remove the wave washer while making sure that it does not touch the slip ring (B). (Be careful not to damage the slip ring or contaminate it with oil or foreign substance.)
Courtesy of HYUNDAI MOTOR AMERICA
Reassemble in the reverse order of disassembly.
