Components And Components Location: Components

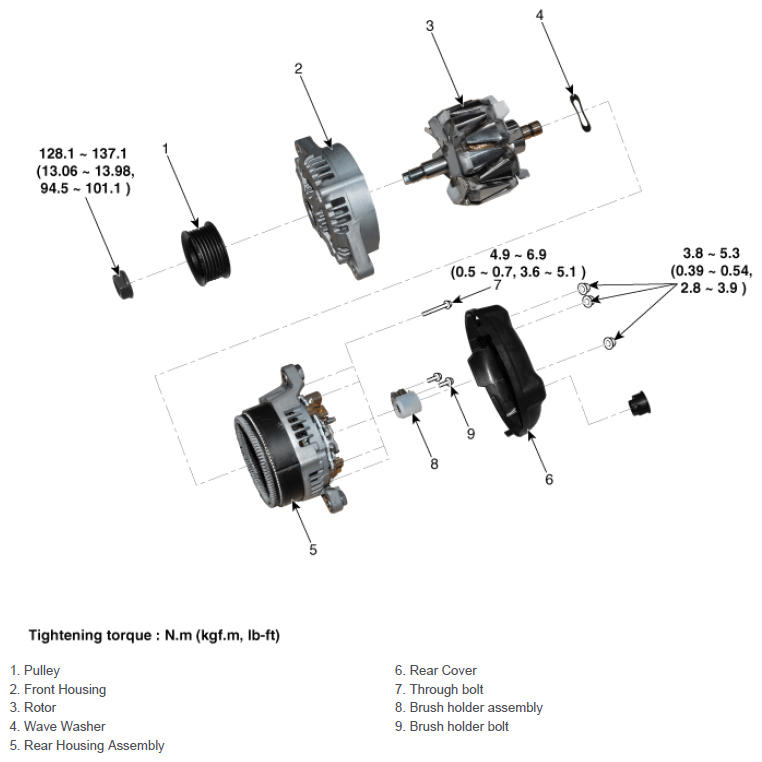

Fig 1: Alternator Components With Torque Specification

G12991666

Courtesy of HYUNDAI MOTOR AMERICA
