Terminal Function

[EPB None Apply]

G12996031Courtesy of HYUNDAI MOTOR AMERICA
PIN No Description Current
max min
1 Voltage supply for pump motor 40A 10 MΩ
2 Hazard switch 1.2 mA 250 MΩ
3 -
4 C-CAN HIGH 100 mA 250 MΩ
5 C-CAN LOW 100 mA 250 MΩ
6
7 P-CAN LOW 100 mA 250 MΩ
8 P-CAN High 100 mA 250 MΩ
9 Wheel speed sensor power voltage (RL) 100 mA 250 MΩ
10 Wheel speed sensor power voltage (RR) 100 mA 250 MΩ
11 Wheel speed sensor power voltage (FR) 100 mA 250 MΩ
12 Wheel speed sensor power voltage (FL) 100 mA 250 MΩ
13 Recirculation pump ground 40A 10 MΩ
14 -
15 Clutch Switch (MT Only) 1.2 mA 250 MΩ
16 DBC Switch 1.2 mA 250 MΩ
17 ESP Switch 1.2 mA 250 MΩ
18 -
19 Parking brake switch 1.2 mA 250 MΩ
20 -
21 Wheel speed sensor ground (RL) 40 mA 250 MΩ
22 Wheel speed sensor ground (RR) 40 mA 250 MΩ
23 Wheel speed sensor ground (FR) 40 mA 250 MΩ
24 Wheel speed sensor ground (FL) 40 mA 250 MΩ
25 Voltage supply for solenoid valves 30A 10 MΩ
26 -
27 -
28 -
29 -
30 Brake lamp switch 1.2 mA 250 MΩ
31 -
32 IGN 1 10 mA 50MΩ
33 -
34 HAC/BLA signal output 1.2 mA 250 MΩ
35 ESS signal output 1.2 mA 250 MΩ
36 -
37 Wheel speed sensor output (FR) 50 mA 250 MΩ
38 Ground for solenoid valves and ECU 30A 10 MΩ

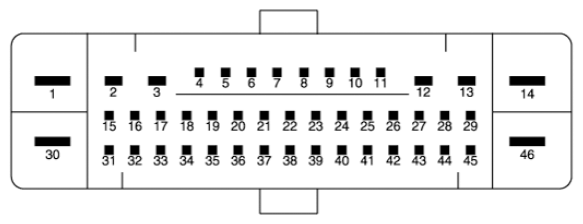

G12996032Courtesy of HYUNDAI MOTOR AMERICA
PIN No Description Current
max min
1 Voltage supply for pump motor 39A 10 MΩ
2 RR EPB motor power 30A 10 MΩ
3 RR EPB motor ground 30A 10 MΩ
4 Clutch stroke sensor signal - -
5 Local CAN High 30 mA -
6 Electric parking brake signal 1 20 mA 250 MΩ
7 Electric parking brake signal 2 20 mA 250 MΩ
8 Electric parking brake signal 3 20 mA 250 MΩ
9 Electric parking brake signal 4 20 mA 250 MΩ
10 - - 250 MΩ
11 - - -
12 RL EPB motor ground 30A -
13 RL EPB motor power 30A 10 MΩ
14 Ground for solenoid valves and ECU 30A 10 MΩ
15 - - 10 MΩ
16 - - 250 MΩ
17 ESP OFF switch signal 16.8 mA
18 N' Signal - 250 MΩ
19 Local CAN High 10 mA 250 MΩ
20 Local CAN Low 30 mA 250 MΩ
21 - - 250 MΩ
22 P-CAN LOW -
23 P-CAN High 200 mA 250 MΩ
24 - - 250 MΩ
25 Wheel speed sensor supply voltage (RL) 16.8 mA
26 Wheel speed sensor supply voltage (RR) 16.8 mA 250 MΩ
27 Wheel speed sensor supply voltage (FR) 16.8 mA 250 MΩ
28 Wheel speed sensor supply voltage (FL) - 250 MΩ
29 - 16.8 mA 250 MΩ
30 Voltage supply for solenoid valves 30A
31 - - 10 MΩ
32 - Open drain
33 - -
34 Auto holding ON/OFF switch signal 10 mA
35 Brake light switch 10 mA 250 MΩ
36 HAC/BLA signal output 16.8 mA 250 MΩ
37 IGN 1 5A 250 MΩ
38 ESS signal output 16.8 mA 50 MΩ
39 - 16.8 mA 250 MΩ
40 - -
41 - -
42 - - 250 MΩ
43 - - 250 MΩ
44 Wheel speed sensor ground (FL) 30 mA 250 MΩ
45 Wheel speed sensor ground (FR) 30 mA 250 MΩ
46 Recirculation pump ground 40A 250 MΩ
