Components And Components Location: Components

[2WD]

Fig 1: Rear Wheel Speed Sensor Component With Torque Specification (2WD)

Courtesy of HYUNDAI MOTOR AMERICA

[4WD]

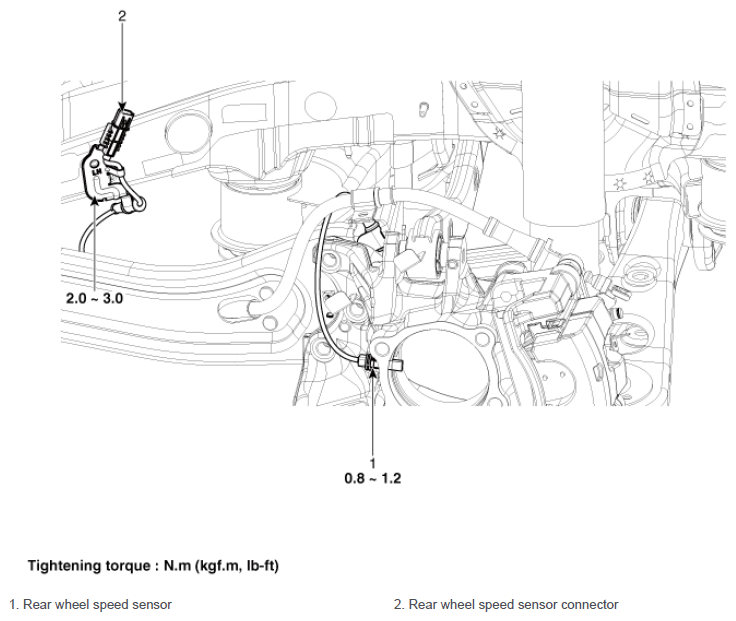

Fig 2: Rear Wheel Speed Sensor Component With Torque Specification (4WD)

Courtesy of HYUNDAI MOTOR AMERICA
