Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Remove the steering column upper and lower shrouds.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

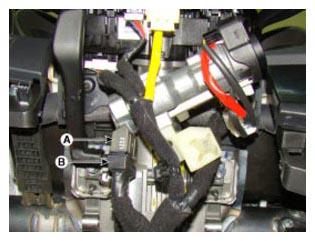

- Remove the ignition switch (A) after disconnecting the 6P connector (B).

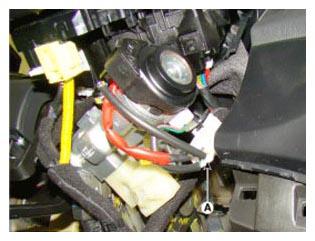

- Remove the key warning and immobilizer connector (A).
- If it is necessary to remove the key lock cylinder (A), remove the key lock cylinder with key ACC.
