Home >> Hyundai >> 2019 >> Santa Fe SE, FWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.

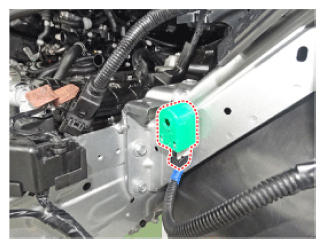

  3. Disconnect the connectors, then remove the buzzer (A).
    G12999028Courtesy of HYUNDAI MOTOR AMERICA
