Repair Procedures: Inspection

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the room lamp assembly then check for continuity between terminals.

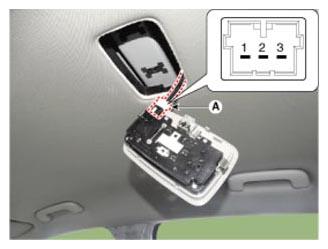

G13038029Courtesy of HYUNDAI MOTOR AMERICA
G13038030Courtesy of HYUNDAI MOTOR AMERICA

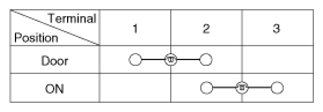

G13038031Courtesy of HYUNDAI MOTOR AMERICA
