Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

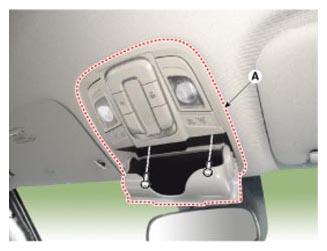

  2. Remove the mounting screws (2EA).

    And then remove the overhead console (A).

    G13038039Courtesy of HYUNDAI MOTOR AMERICA

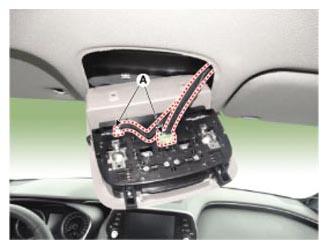

  3. Remove the overhead console after disconnect the connector (A).
    G13038040Courtesy of HYUNDAI MOTOR AMERICA

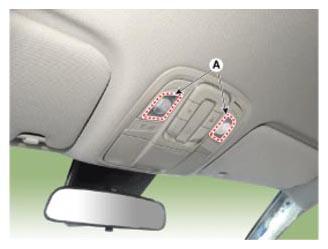

  4. If it is necessary to replace the bulb, replace the bulb after removing the lens (A).
    G13038041Courtesy of HYUNDAI MOTOR AMERICA
