Repair Procedures: Removal
WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
- Remove the steering wheel.
(Refer to Steering System - "REMOVAL ")

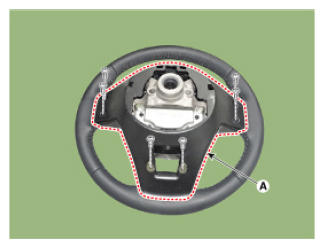

- Remove the steering wheel cover (A) after loosening the screws.

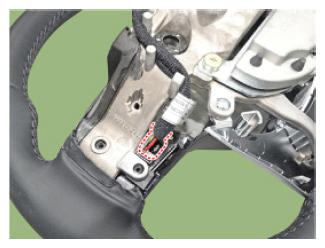

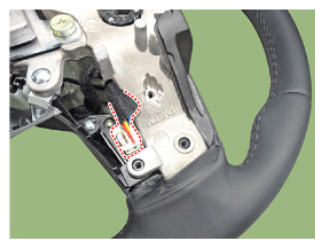

- Loosen the screws and then disconnect the steering wheel remote control switch connector.

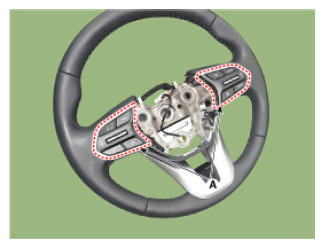

- Remove the remote control switches (A).
