Repair Procedures: Inspection
WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

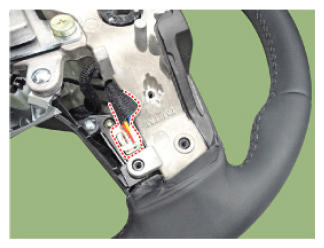

- Check for resistance between terminals in left switch position.RESISTANCE REFERENCE
Switch Connector terminal Resistance (± 3%) SEEK Up 1 - 6 430 Ω SEEK Down 1 - 6 1.1 kΩ MODE 1 - 6 2.11 kΩ MUTE 1 - 6 3.11 kΩ Volume up 1 - 6 4.61 kΩ Volume down 1 - 6 6.81 kΩ Voice 1 - 6 10.71 kΩ END 1 - 6 18.91 kΩ SEND 1 - 6 40.91 kΩ - Check for resistance between terminals in right switch position.RESISTANCE REFERENCE
Switch Connector terminal Resistance (± 3%) CANCEL 2 - 6 390 Ω SET (-) 2 - 6 610 Ω RES (+) 2 - 6 910 Ω Cruise ON/OFF 2 - 6 1.38 kΩ Cruise Mode 2 - 6 2.13 kΩ Smart Cruise 2 - 6 3.63 kΩ Trip Group 1 - 6 390 Ω Trip Up 1 - 6 610 Ω Trip Down 1 - 6 910 kΩ Trip OK 1 - 6 1.38 kΩ
